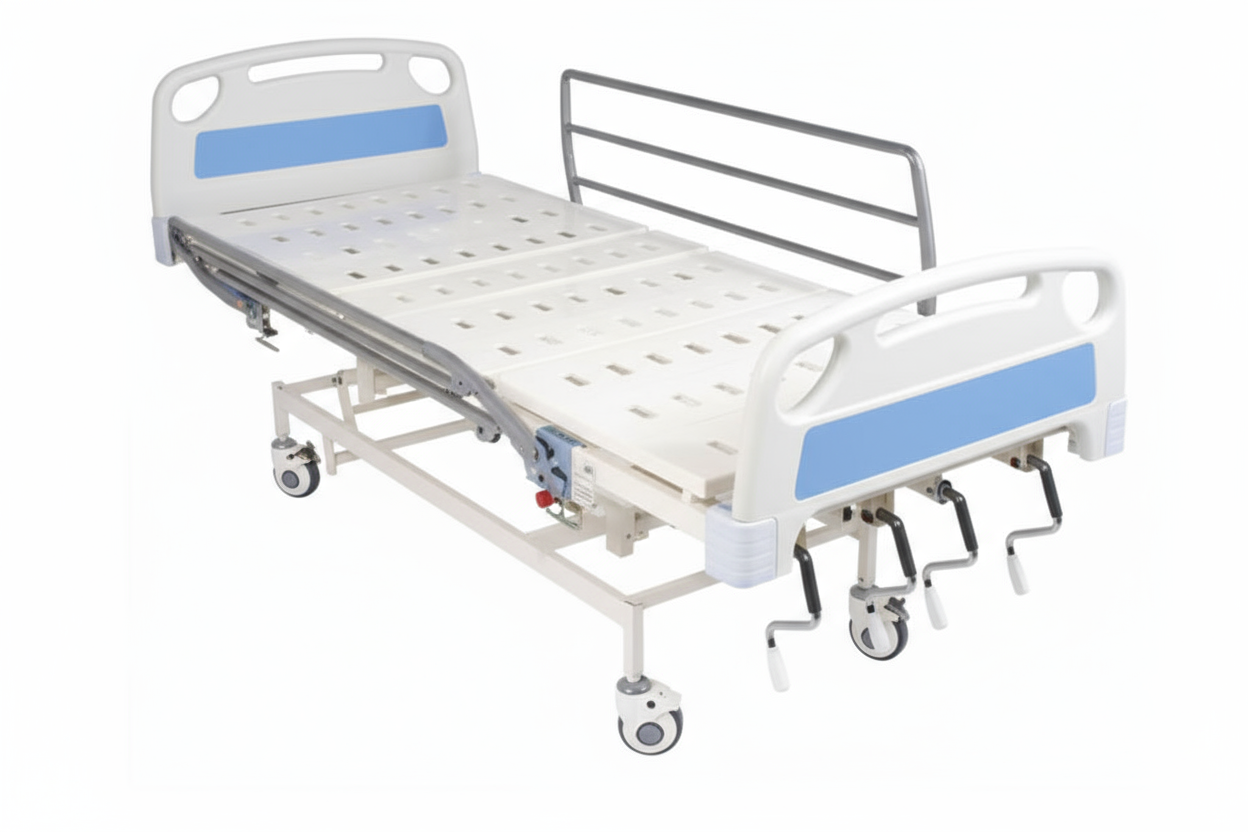

Mechanical ICU Bed ABS HF with SS Railing – Advanced Manual ICU Hospital Bed
Advanced Mechanical ICU Care with Reliable Safety and Comfort
The Mechanical ICU Bed ABS HF with SS Railing provides the ideal solution for hospitals and patient care centers needing advanced positioning for critical care patients without reliance on electronics. Built for reliability, hygiene, and patient safety, this bed fuses modern ABS aesthetic panels with durable stainless steel side railings—delivering both a professional look and practical functionality.
Key Features & Benefits
-
ABS Head & Foot Panels: Ergonomically contoured, detachable ABS panels for easy cleaning, hygiene, and modern medical aesthetics.
-
Stainless Steel (SS) Side Railings: Collapsible, secure side rails constructed from medical-grade SS, offering durability, easy operation, and uncompromising patient protection.
-
Four-Section Perforated Platform: Divided CRCA or mild steel surface allows multi-positional adjustment (backrest, knee rest, Trendelenburg/reverse, hi-low).
-
Smooth Mechanical Crank System: Multiple manual cranks (typically 3–5) for precise control of backrest, knee rest, bed height, and Trendelenburg/reverse Trendelenburg positions.
-
Sturdy Frame Construction: Heavy-duty CRCA or mild steel epoxy-powder coated structure ensures support, stability, and long working life.
-
Medical-Grade Mobility and Braking: 125mm castor wheels (at least 2 with brakes) for easy, secure relocation across wards.
-
IV Pole & Accessory Mount: Integrated IV hanger provision at multiple points for flexible clinical usage.
-
PU Buffers: All four corners provided with PU buffers to guard against accidental impact during handling.
Clinical Applications
-
Intensive Care Units (ICU)
-
Emergency Rooms & Trauma Centers
-
High-Dependency Wards
-
Cardiac and Respiratory Recovery Rooms
-
Step-Down and Rehabilitation Units
Product Specifications
| Specification | Details |
|---|---|
| Overall Size | ~2160mm (L) x 1020mm (W) x 600–800mm (H) |
| Frame | CRCA/Mild Steel, Epoxy Powder Coated |
| Head/Foot Panels | ABS, Ergonomically Molded, Detachable |
| Side Rails | Four SS collapsible/locking safety railings |
| Mattress Platform | Four-section, perforated steel |
| Backrest Adjustment | By crank – up to ~70–80° |
| Knee Rest Adjustment | By crank – up to ~35–45° |
| Height Adjustment | By crank – Hi-Low (up to 200mm range) |
| Trendelenburg/Reverse | By crank (optionally – up to ±12°) |
| Castors | 125mm diameter, 2+ with individual brakes |
| IV Pole | Heavy-duty, at four locations |
| Safe Working Load | 150–250 kg |
| Buffers | Corner PU buffers for impact protection |
| Finish | Smooth, hospital-grade epoxy powder coating |
Why Choose the Mechanical ICU Bed ABS HF with SS Railing?
-
Multi-Function Adjustability: Backrest, knee rest, hi-low, and optional Trendelenburg positions for total clinical flexibility.
-
Professional Safety: Medical-grade SS railing is robust, easy to collapse or lock, and enhances patient security.
-
Durable Modern Construction: ABS head/foot boards are sleek and easy to clean, while the steel frame withstands institutional use.
-
Manual Operation: No reliance on electrical components—guaranteed function even in emergencies or power outages.
-
Mobility and Versatility: Easily transported between wards, secured in place with reliable brakes.
-
Easy Maintenance: Powder coated surfaces, ABS panels, and SS rails clean/disinfect easily for infection control.
-
Hospital-Ready Aesthetics: Modern look suits high-profile ICU environments.
